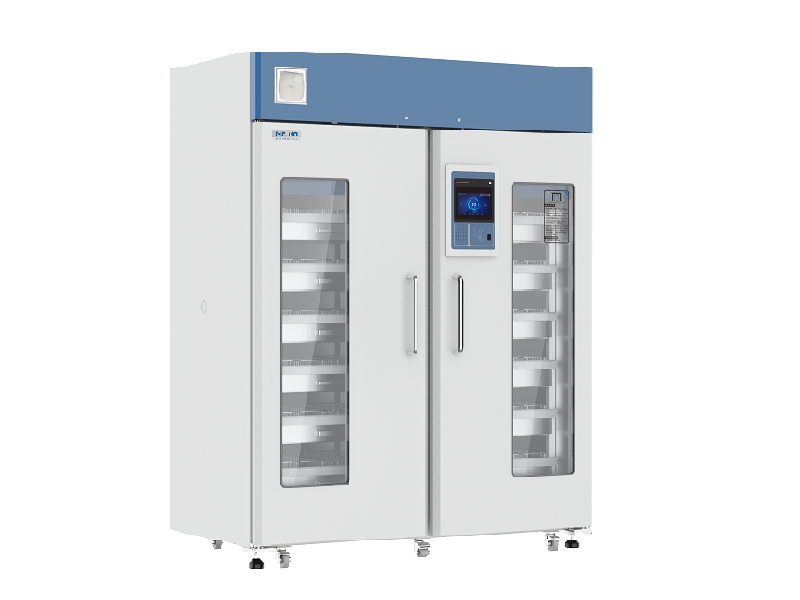

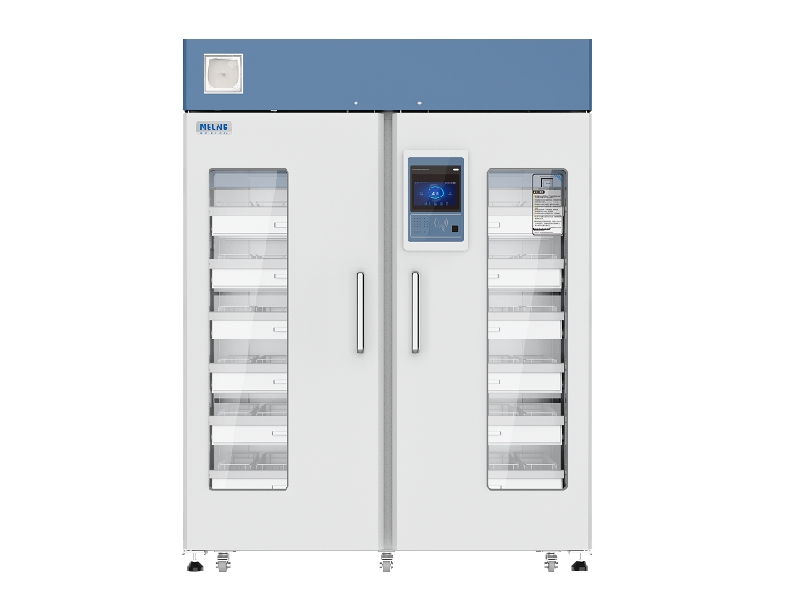

Meling 4℃ Blood Bank Refrigerator XC-1378L

•Environment-friendly hydrocarbon refrigerant

•Temperature uniformity ≤±1℃

•304 Stainless steel drawers

•Self-closing design, hovering above 90° and self-closing within 90°

•USB data can be exported and stored once every 5 minutes by default, with a maximum support of 10 years.

Request A Quote

Overview

Meling large capacity blood bank refrigerator XC-1378L and XC-1380L , suitable for blood stations, hospitals, research institutes, centers for disease control and prevention and other places that need to preserve Concentrated red blood cell（CRC），Leukocyte-Poor Red Cell（LPRC），Red cell suspension（CRCs）,Washed red blood cells（WRC）,Frozen red blood cell（FTRC）and Full blood.

Large capacity

400ml/450ml blood bagscan store up to768 / 624 pieces.

Environment-friendly hydrocarbon refrigerant

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise.

Security System

·Perfect audible and visual alarm system comes with alarm functions for high temperature, low temperature, sensor failure,

door ajar,and power failure.

Human-oriented

304 Stainless steel drawers

400ml/450ml blood bagscan store up to768 / 624 pieces.

Self-closing door design, the door will hover when it is opened more than 90°, and will close automatically when it is opened less than 90 °

Features

Temperature uniformity ≤±1℃
USB data can be exported and stored once every 5 minutes by default, with a maximum support of 10 years.L
Self-closing door design, the door will hover when it is opened more than 90°, and will close automatically when it is opened less than 90 °
Audible and visible alarm system with high/low temperature alarm, power failure alarm, door ajar alarm, power failure alarm,etc.
large capacity, 400ml/450ml blood bagscan store up to768 / 624 pieces.

Intended Use

The refrigerator is used for storing blood product; is applicable to blood stations, hospitals, epidemic prevention stations, research institutes etc.

Specifications

4℃ Blood Bank Refrigerator
Model	XC-1378L
Cabinet typeypeCbincaCabinet Typeet Type	Upright
Capacity(L）	1378
Internal size(WDH)mm	14606801512
External size(WDH)mm	15609401978
NW(Kgs)	443
Performance
Temperature range	2~6℃
Ambient temperature	16-32℃
Climate class	N
Refrigeration
Compressor	1pc
Cooling method	Air cooling
Defrost mode	Automatic
Refrigerant	R600a
Insulation thickness(mm)	L:67,R:50, B:50
Construction
External material	PCM
Inner material	Stainless steel
Drawers	12(Stainless steel drawer)
Alarm
Temperature	High/Low temperature,High ambient temperature
Electrical	Power failure , Low battery
System	Sensor failure,Door ajar,Condenser overheating,Communication error
Accessories
Standard	RS485,Remote alarm contact
Option	Chart recorder
