2℃~8℃ Undercounter Pharmacy Refrigerator with solid door YC-130EL

•Accurate Control System

•Powerful Refrigeration System

•Ergonomic Operation Design

•Perfect audible and visual alarms

•Build-in USB datalogger

Request A Quote

Overview

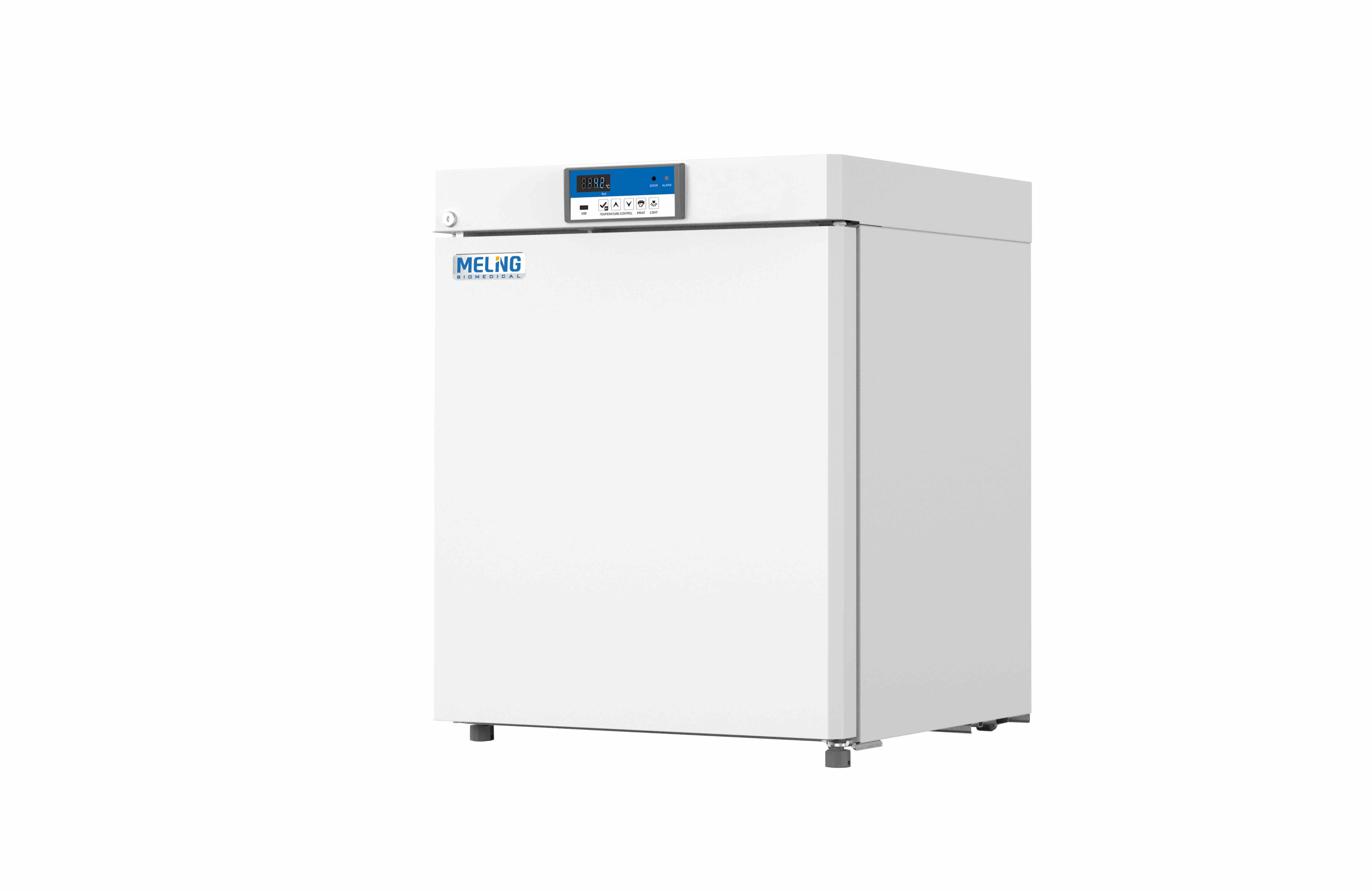

Meling small 2℃~8℃ vaccine refrigerator YC-130EL gives you a brand new appearance and is designed in smart undercounter/benchtop size.

This small undercounter/benchtop medical refrigerator is equipped with intelligent temperature controller and brings out constant temperature. Adopt double layer foamed solid door, high efficiency heat preservation.There are multiple alarm functions to ensure safety of storage. The complete air-cooling design of the vaccine refrigerator ensures no worry about frosting. You can apply the pharmaceutical refrigerator in laboratories, hospitals, pharmacies, disease prevention and control centers, health centers, pharmaceutical factories, medical facilities, and more.

Accurate Control System
This 2℃~8℃ vaccine refrigerator for medicine comes with high precision temperature control system with high sensitive sensors. And it can well keep the temperature inside the cabinet in the range of 2℃~8℃. We design the pharmaceutical refrigerator with high brightness digital temperature and humidity display for automatic temperature control and ensure the display accurately in 0.1℃.

Powerful Refrigeration System
The medical / lab refrigerator is equipped with brand new compressor and condenser, which is for better cooling performance and well keeps the temperature uniformity within 1℃. It is air cooling type with feature of auto-defrost. And the HCFC-FREE refrigerant brings out more effective refrigeration and ensures environmentally friendly.

Humanized Operation Design
It has a front opening lockable door with full height handle. The inside of the medical refrigerator is designed with lighting system for easy look. The light will turn on while door is opened, and the light will goes off while the door is closed. The cabinet is made of high quality steel, and the inner side material is Aluminum plate with spraying, which is durable and easy to clean.

Features

Perfect audible and visual alarms including high and low temperature alarm, power failure alarm, sensor failure alarm, and door ajar alarm
With 3 high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
1 cooling fan inside, working while door is closed, stopped while the door is opened
The CFC-free polyurethane foam insulating layer is environmentally friendly
Adopt double layer foamed solid door, high efficiency heat preservation
The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
The door is equipped with a lock preventing from unauthorized opening and operation

Scope of Application

Undercounter/benchtop vaccine refrigerator for medicine storage,Suitable for storage of biological products, vaccines, drugs, reagents, and more; Suitable for use in pharmacies, pharmaceutical factories, hospitals, centers for disease prevention & control, clinics, etc.

Specifications

2~8℃ Pharmacy Refrigerator
Model	YC-130EL
Cabinet type	Upright
Capacity(L）	130
Internal size(WDH)mm	554510588
External size(WDH)mm	650625810
Package size(WDH)mm	720703880
NW/GW(Kgs)	51/56
Performance
Temperature range	2~8℃
Ambient temperature	16-32℃
Cooling performance	5℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Air cooling
Defrost mode	Automatic
Refrigerant	R600a
Insulation thickness(mm)	L/R:48,B:50
Construction
External material	PCM
Inner material	Aumlnum plate with spraying/Stainless steel(optional)
Shelves	3 (coated steel wired shelf)
Door lock with key	Yes
Lighting	LED
Access port	1pc. Ø 25 mm
Casters	2+2( leveling feet）
Data logging/Interval/Memory capacity	USB/Record every 10 minutes / 100,000data
Door with heater	Yes
Alarm
Temperature	High/Low temperature, High ambient temperature
Electrical	Power failure, Low battery
System	Sensor failure, Door ajar, Built-in datalogger USB Failure, Communication failure
Standard Accessories
System	RS485, Remote alarm contact
