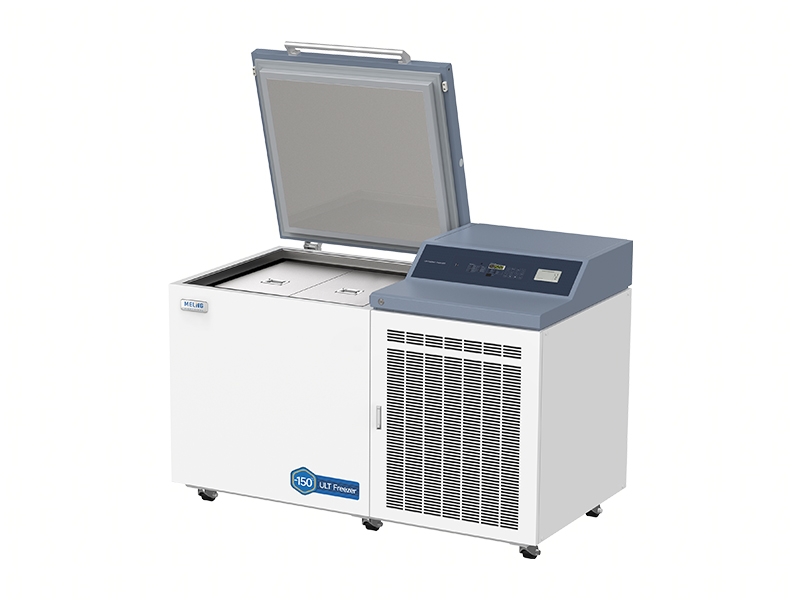

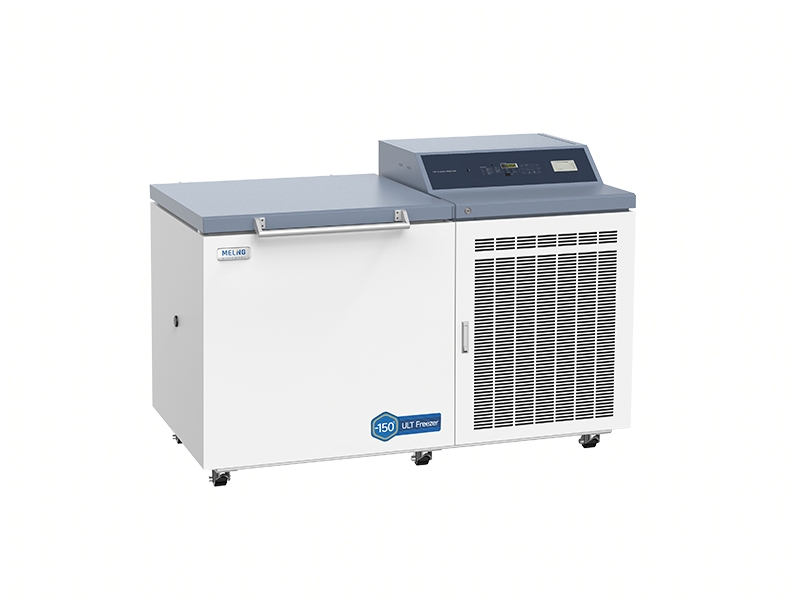

-150℃ Cryogenic Freezer Ultra Deep Freezer DW-UW128

•Targeted refrigeration with high-efficient cooling system

•High-precision temperature control system

•Well-developed audible and visual security system

•VIP vacuum three-dimensional thermal insulation

•Single-pole lubrication compressor refrigeration technology

Request A Quote

Overview

Meling -150℃ cryogenic freezer DW-UW128 deep freezer has Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention. With DW-UW128, the company becomes the superior leader in the same industry that can produce the lowest temperature to -150℃ and can mass produce the products.

Features

Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention.
The turn-on delay and stopping interval protection function can ensure reliable operation.
The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission
Environmental protective refrigerant invented by Chinese academy of science(CAS) Unique refrigeration circuit with china patent Refrigeration technology of single-stage oil slide compressor, powerful cooling ability Famous international compressor, quick cooling Famous international fan motor.
Unique two times foaming technology, super thick VIP insulation which greatly improves the insulation effect； VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.
Chest type with lid to be opened from the top, assisting balanced hinges to make it easily Casters can be fixed for easy movement and fixation.

Mappings

Cryogenic Freezer

Scope of Application

Application to scientific research, low temperature test of special materials, freeze skins, DNA/RNA, bones, bacteria, sperm and biological products etc. Suitable for use in hospitals, sanitation and anti-epidemic stations, biological engineering, laboratories in colleges & universities, military enterprises and so on.

Specifications

- 150℃ Cryogenic Freezer
Model	DW-UW128
Capacity(L)	128
Internal size(WDH)mm	510460540
External size(WDH)mm	166510001115
Package size(WDH)mm	181510851304
NW/GW(Kgs)	390/529
Performance
Temperature range	-110～-150℃
Ambient temperature	16-32℃
Cooling performance	-145℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	Mixture gas
Insulation thickness(mm)	205
Construction
External material	High quality Steel plates with spraying
Inner material	304 Stainless steel
Foaming lid	2
Backup battery	Yes
Casters	6
Access port	1pcs. Ø 40 mm
Data logging/Interval/Memory capacity	Printe/Record every 20 minute /100,000data
Alarm
Temperature	High/Low temperature,High ambient temperature
Electrical	Power failure , Low battery
System	Sensor error,System failure,Condenser overheating,communication failure
Options Accessory
System	CO2 backup system

Dimensions
