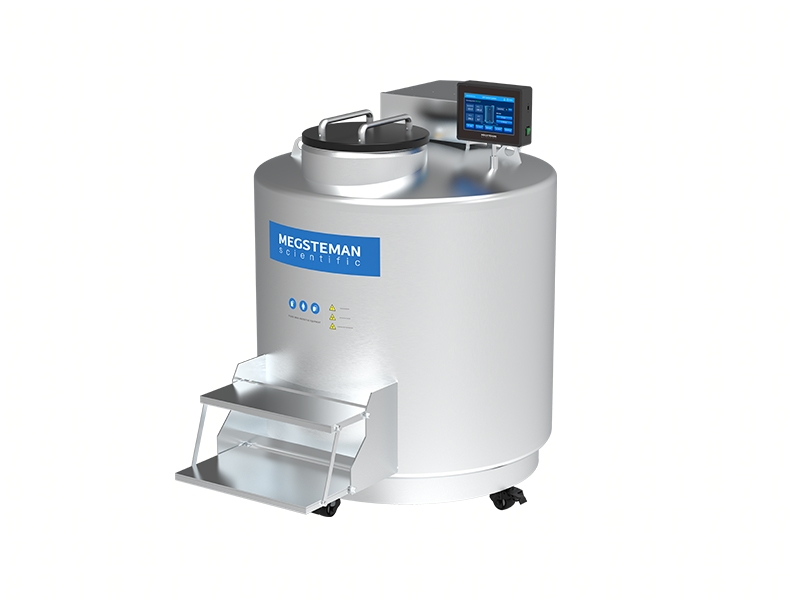

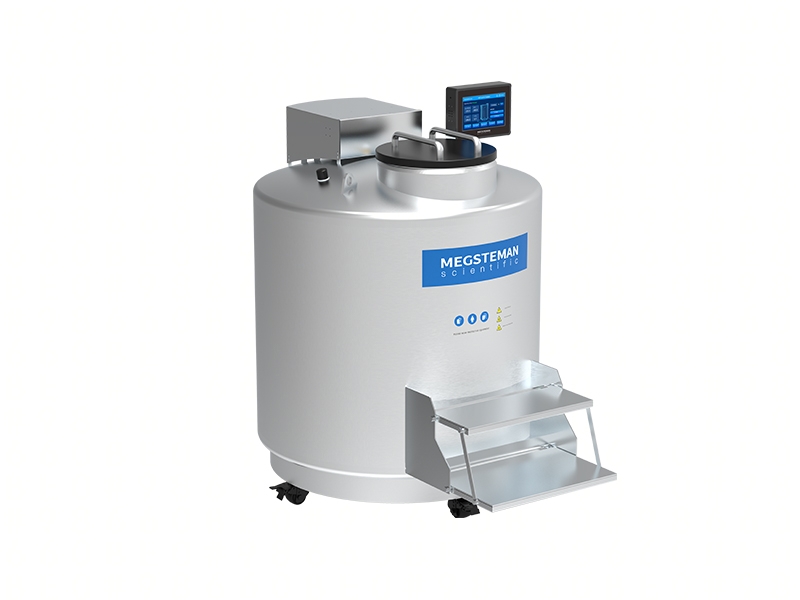

Liquid Nitrogen Tank MYDD-550(R)

High- quality stanless steel
Samples can be stored in liquid or vapor phases
Microcomputer touch screen control system
Large capacity
Excellent temperature uniformity

Request A Quote

Overview

The professional liquid nitrogen tank is suitable for medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Large Capacity

Multiple configuration options to meet storage need ranging from 13000 to 128350 samples, reducing sample storage costs while saving time.

Excellent Temperature Uniformity

Vaccum insulated stainless steel box structure ensures superior thermal insulation and temperature retention performance.

Automatic Filling and Liquid Level Monitoring

The liquid level monitoring system with capacitive sensor shows the liquid level in real time to ensure safe liquid nitrogen automatic filling.
The 10-inch LCD touch screen can display top and bottom temperature, liquid level, operating status and other parameters.

Stable Opening Temperature

An innovative tank lid design with an offset neck opening significantly reduces liquid nitrogen evaporation rates.

Features

* Large caliber: Extra-large caliber, including tank calibers of 317, 440, 465, and 635,convenient for sample storage and easy to use.

* Optional Vapor Phase & Liquid Phase: The vapor phase or liquid phase storage method can be freely selected, and the storage area temperature is constant and close to the liquid nitrogen temperature when the vapor phase is used.

* Low Energy Consumption & High Cooling Retention: High vacuum insulation,wrapped multi-layer insulation technology, uniform and stable insulation design, can achieve low energy consumption of the container, and keep the port temperature stable below -190℃.

* Intelligent Monitoring: Optional intelligent monitoring system enables high-precision temperature and liquid level monitoring for LN2 tanks, and provides local and remote warnings via SMS, phone calls, WeChat, etc. to ensure the safety of samples.

*Intelligent Fluid Replenishment:Through precise monitoring of internal temperature and liquid level in LN2 tanks,complemented by an automated refill system, intelligent management of liquid nitrogen replenishment is achieved.

Scope of Application

Meling Liquid Nitrogen Tank suitable for medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Specifications

Meling Liquid Nitrogen Tank
Model	MYDD-550(R)
Liquid nitrogen at the bottom of the tray(L)	85
Effective volume(L)	673
Caliber(mm)	440
Internal effective height(mm)	662
Outer diameter(mm)	1160
Total height(mm)	1536
Lifting arm height(mm)	2571
Empty tank weight(kg)	440
Total weight at full load(mm)	990
Door width requirement≥mm	1250
Maximum storage quantity of 2ml revolve freezing tube
1.2、1.8、2ml revolve freezing tube quantity	27000
5*5 square bucket quantity	12
10*10 square bucket quantity	24
5*5 box quantity(25)	120
10*10 box quantity(100)	240
Layers of square bucket	10
